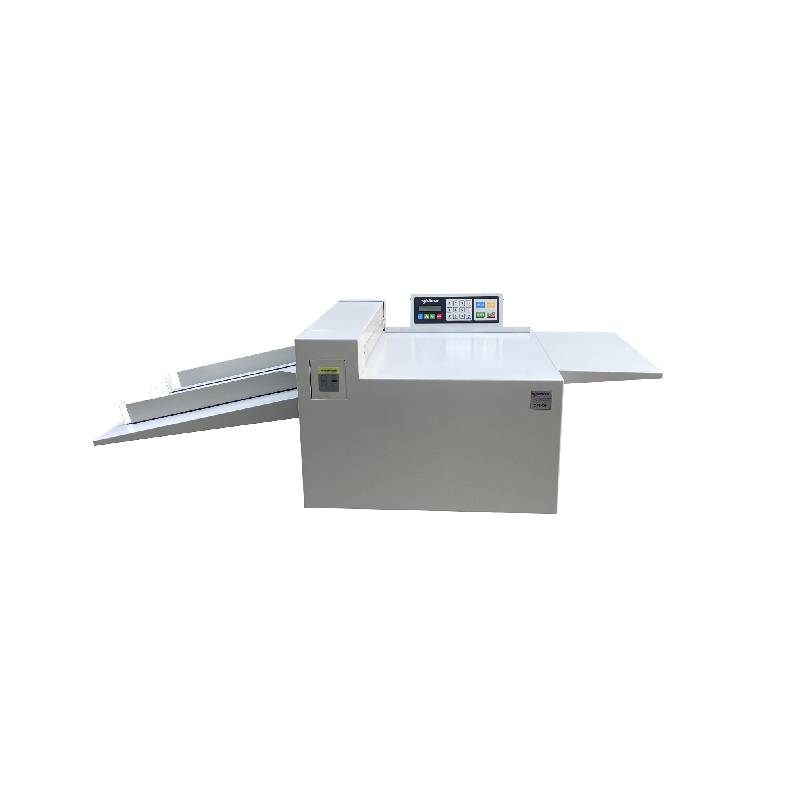

CP340H Manual Feed
Button panel, fast creasing speed, digital system, manual feeding creaser, suitable for flyers, leaflets, menu, book covers, etc.
VIDEO PLAY
CATALOG
Χ
Specifications
| Paper Width | 340mm |
| Mode | Creasing & Perforating |
| Paper Feed Type | Manual Feeding |
| Speed | 3,150 sheets / hr (A4 / 1 creasing) |
| Optional | Cross Creasing, Cross Perforating, Cross Slitting |
| Paper Thickness | Creasing: 60 gsm - 400 gsm Perforating: 60 gsm - 250 gsm |
| Creasing Accuracy | ±0.2mm |
| Memory | 32 |
| mm / inch | Changeable |
| Paper Size | 50 x 90mm ~ 340mm x 3000mm |
| Creasing / Sheet | 32 |
| Counter | Total Counter & Batch Counter |
| Power | 110V / 220V |
| Other Functions | No Paper Paper Jammed Detector |
Note: The machine comes with one set of creasing knife and one set
of perforating knife.
