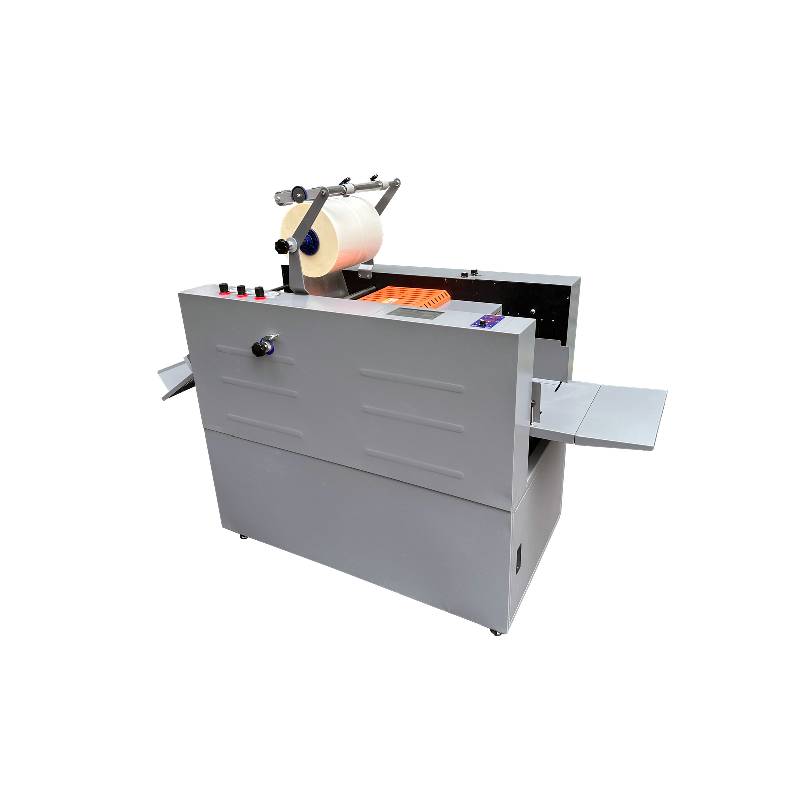

Neo-390G/520G/650G Pneumatic Air Suction Feeding Auto Cut Overlap Laminator
Neo-390G/520G/650G Pneumatic Air Suction Feeding Auto Cut with Overlap Laminator with big touch panel,slitting,perforating and auto cut & overlap function.Operating speed is 14 meters / minute, max.laminating width is 360mm/500mm/650mm,paper thickness is 125-350gsm, upper/lower temperature are controlled separately, air suction feeding mode.
CATALOG
Χ
Specifications
| Max. laminating width | 360mm/500mm/650mm |
| Operating speed | 14 meters/minute |
| Paper thickness | 125-350gsm |
| Laminating temperature | 90 - 110 degree(normal) |
| Total Power | 2.2KW |
| Temperature control | Upper / lower temperature are controlled separately |
| Upper heating roll | Steel roll (standard) |
| Lower heating roll | Rubber roll |
| Control panel | 7'' Touch Panel |
| Feeding mode | Suction Feeding |
| Overlap | Yes |
| Auto Bursting | Yes |
| Optional | Two sides lamination with auto cut function |
| Slitting function | Yes |
| Anti-curling function | Yes |
| Loading capacity | 150mm |
| Rewinder | Optional |
| Voltage | 220V 50/60Hz |
| Dimensions(LxWxH) | 185x75x147/199x89x147/214x104x147 |
| Option | Compressor |
