520HP Hydraulic Guillotine

Fully hydraulic system, foot pedal for pre-clamping, adjustable clamp pressure, 99 programs with 99 steps each, safety beam for safe operation, big color touch screen in mm/inch, LED working light for better working environment

VIDEO PLAY
CATALOG
Χ

Specifications

Fast cutting speed, suitable for printing houses and copy centers.



Specifications:


Cutting Width520mm / 20.47"
Cutting Height80mm / 3.15"
Narrow Cut15mm / 0.59"
Cutting Depth560mm / 22.05"
Dimensions (H x W x D)1396 x 946 x 1300mm
Power Supply230V 50/60Hz 1PH 20A
Weight410 kg



Main features:

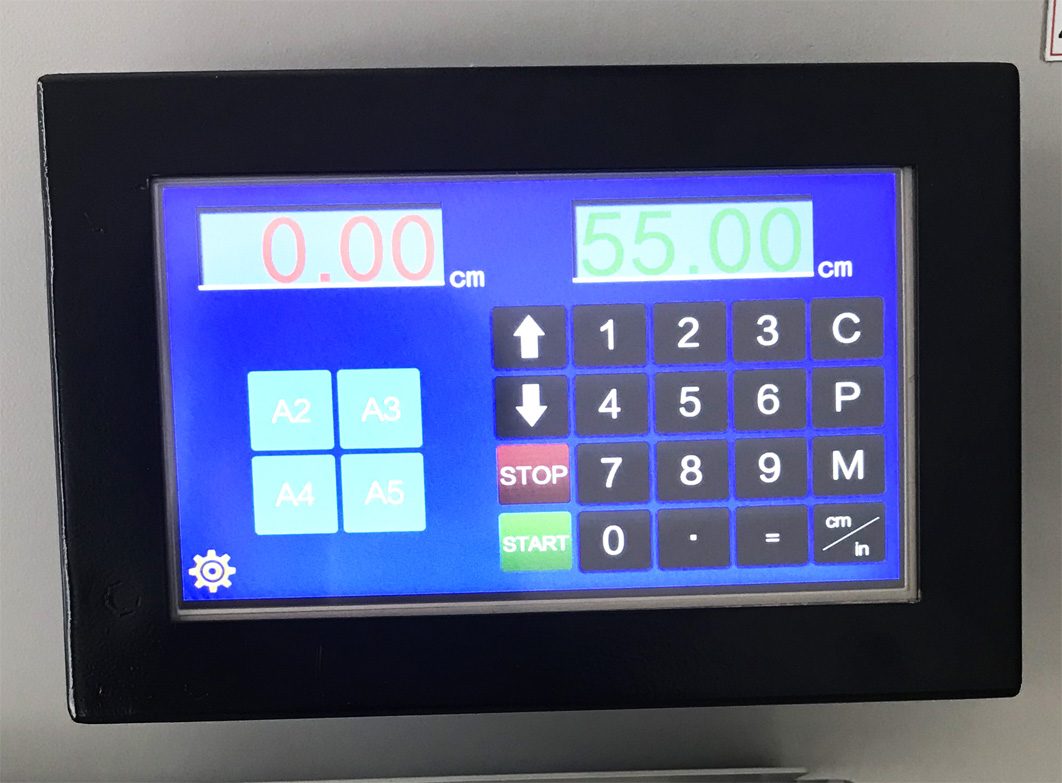

Big color touch screen   Adjustable clamp pressure



Other features and functions:


- Fully hydraulic system

- Adjustable clamp pressure

- Foot pedal for pre-clamping and optical cutting line indicator

- 99 programs with 99 steps each

- Big color touch screen in mm/inch

- LED working light

- Safety beam for safe operation

- Safety two-handed operation

- Safety blade change device

- Main power switch and safety key lock

- High quality blade

- Blade depth fine-tune can be system controlled

- Electronic hand wheel for backgauge position with variable speed

- Power supply: 230V 50/60Hz 1PH 20A

- Option: Side tables (W : 305mm)

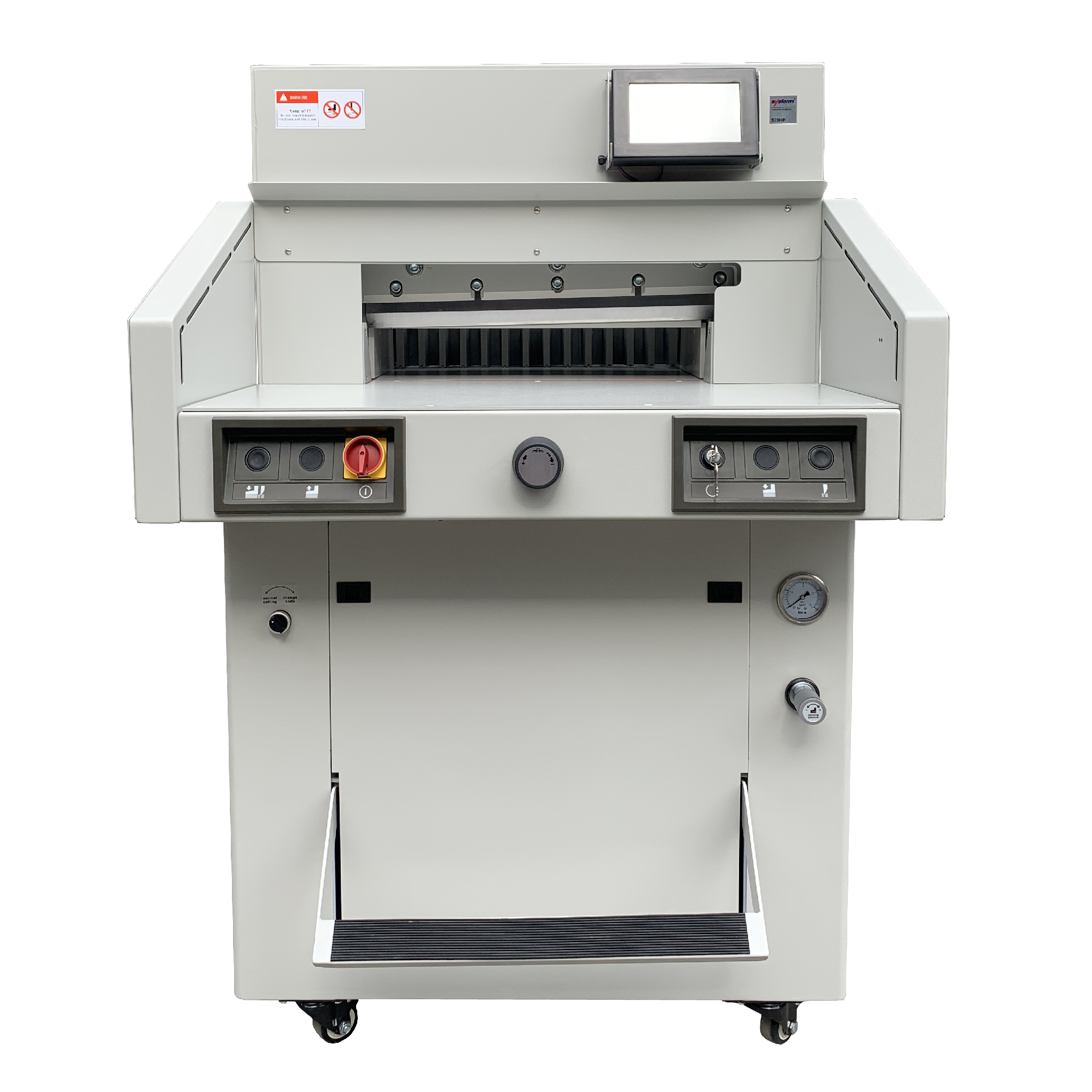

520HP without side tables
